Exercise 01:

  1. What is the physical layer protocol data unit?

  2.  Which layer of the OSI model ensures that the information sent by the transmitter is perfectly readable by the receiver?

  3. What kind of request does a host send to find out an IP address corresponding to a MAC address?

  4. What does bandwidth represent?

  5. Which answer defines a local collision?

  6. What are the characteristics of a Token Ring network?

  7. What are the characteristics of an Ethernet network?

Exercise 02:

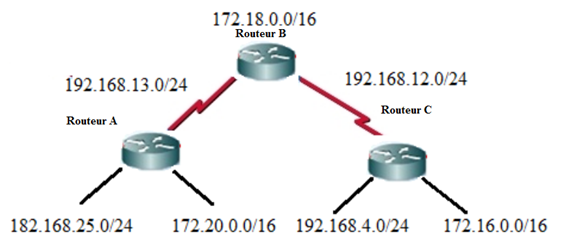

Router A and Router B have been successfully configured using RIP as the dynamic routing protocol and all interfaces on both routers indicate that the interface and routing protocol are enabled. RIP is then configured on Router C using the following commands:

          RouterC(config) # router rip

RouterC(config-router) #network 192.168.4.0

RouterC(config-router) #network 172.16.0.0.

1- If no additional routing is configured on routers A, B, C, what will be the result?
