Tutorial 2 -Network layer (Part4)

Exercise 07:

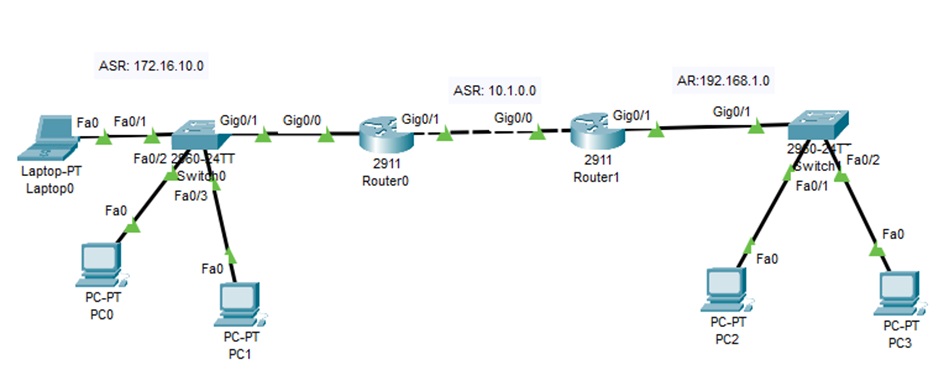

You have the following network

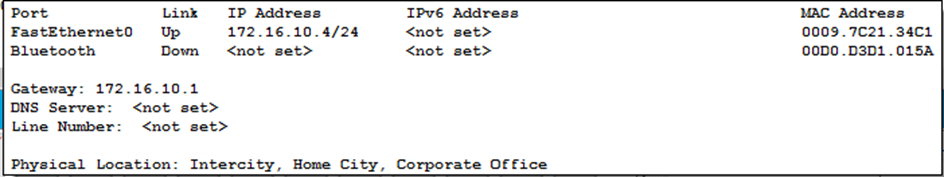

Laptop0

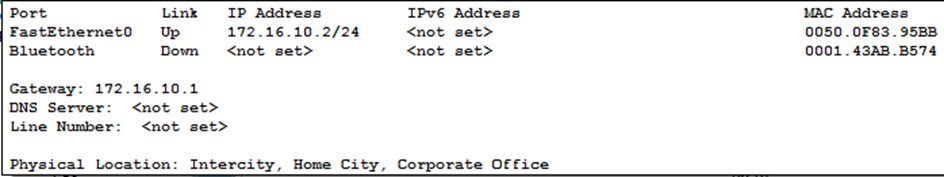

PC1

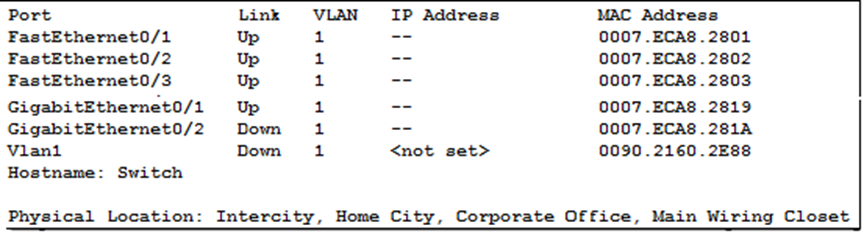

Switch0

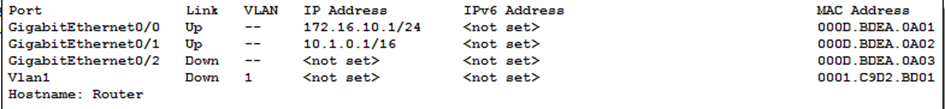

Router0

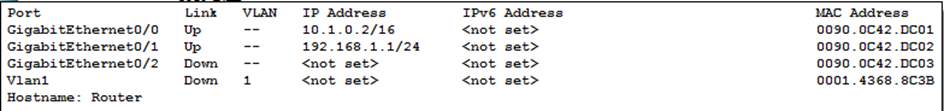

Router1

Switch1

PC2

1. A message is sent from Laptop0 to PC1. Knowing that the ARP table of laptop0 is still empty (first simulation), give the structure of the ARP request and response as well as the structure of the IP packet used to convey the message.
2. Which command allows you to see the new ARP table of laptop0.
3. A message is sent from PC1 to PC2. Knowing that the ARP table of PC1 is empty and that the two routers have all the MAC addresses, give the structure of the ARP request and response as well as the structure of the IP packet used to convey the message.
4. Apply the packet switching principle to get the message to the destination.
