Pratical 3 - VLSM and DHCP
Faculty of Technology Computer Science Department
Module: Computer Networks Teacher: Mrs F.TALEB
|

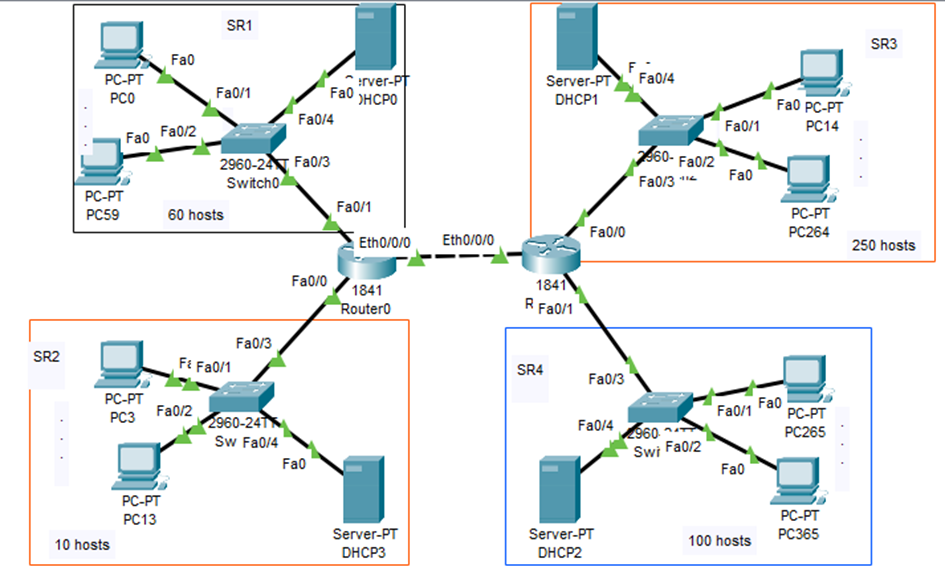

Using Cisco Packet Tracer software (version 8.2.1), simulate the following networks and answer all questions.
In the folowing table, you have all the parameters:
|
Name |
Subnet address |
CIDR Notation |
Mask |
Address Range |
Hosts Number |
Diffusion Address |
|
SR1 |
172.30.5.128 |
/26 |
255.255.255.192 |
172.30.5.129-172.30.5.190 |
62 |
172.30.5.191 |
|
SR 2 |
172.30.5.192 |
/28 |
255.255.255.240 |
172.30.5.193-172.30.5.206 |
14 |
172.30.5.207 |
|
SR 3 |
172.30.4.0 |
/24 |
255.255.255.0 |
172.30.4.1-172.30.4.254 |
254 |
172.30.4.255 |
|
SR 4 |
172.30.5.0 |
/25 |
255.255.255.128 |
172.30.5.1- 172.30.5.126 |
128 |
172.30.5.127 |
|
R0-R1 |
172.30.5.208 |
/30 |
255.255.255.252 |
172.30.5.209- 172.30.5.210 |
2 |
172.30.5.211 |
1- Send an ICMP packet from PC0 to PC 365.
2- Send an ICMP packet from PC13 to PC264.
